5W Smart LED Solar&lnductive Wall Light Black

5W Smart LED Solar&lnductive Wall Light

Model:GS-BD-5Wc
◆Product brand:GS
 LED Brand:Epistar
Motion angle/Distance: 120°/0-8M
Battery:3.2V/3000mah lithium battery
Lighting Time:8 hours
Solar Panel:2.5W Polycrystalline Silicon
Luminous Efficiency:120lm/W
CCT:4000K 6000K

Inquiry

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Installation

Application

Product Details

SPECIFICATIONS

LED Brand:      Epistar                                                     Light Color:                     Cool White,Natural White
LED Type:        COB LED                                                 CCT:                                4000K 6000K
LED QTY:         2pcs COB+3pcs SMD                            Lumens:                          500LM
Size:                210x116x80mm                                          Motion angle/Distance:    120°/0-8M
Material:           ABS                                                           CRI:                                 Ra≥80
Watt:                5W                                                               Working Temperature:    -40℃~65℃
Battery:            3.2V/3000mah lithium battery           Working Humidity:          (20~90)%RH
Lighting Time: 8 hours                                                   Storage Temperature:     -40℃~85℃
Solar Panel:     2.5W Polycrystalline Silicon              Storage Humidity:           (10~90)%RH

彩色横条

DIMENSIONS

尺寸

彩色横条

LUMINOUS INTENSITY DISTRIBUTION DIAGRAM

Model No:GS-BD-5Wc                         -0.5M:278 LUX                     -1M:142 LUX                        -1.5M: 125 LUX

彩色横条

CHARACTERISTICS

•Patent design, smart,beauty,integrated conception, create more convenience for users.
•Unique Curved Appearance, Simplify and Beautiful. Compact Structure design, Durable. Easy install, waterproof and dust proof.
•Adopt High Quality Polycrystal Silicon Solar Panel, High Conversion Solar Photoelectricity, high energy tans-action rate, long lifespan  more than 20 years.
•Use the new generation COB LED as Light Source, with the features of high brightness,  low light decay, long lifespan.
•High performance lithium battery, bigger capacity brings longer lifespan.
•Scientific human induction design, wide angle detection way, makes the body movement detection in large angle and longer distance.

彩色横条

ADVANTAGE

Quality assurance:All the products will go through 5 checks during production,raw material check,
Lights beads check,aluminum plate check,power supply check and the finished products 48 hours test.
Warranty:Two years warranty,the broken lights will be replaced and the new lights will be sent to you
together with your next order.
Competitive production capacity: monthly production more than 100,000 pcs bulbs or other lights
Manufactuer’s price:Factory direct sale,competitive price.

彩色横条

APPLICATIONS

Widely used in gates,courtyards,walls,and any other place where with plenty of sunlight. It can be applied to lighting and decoration at night.

彩色横条

CERTIFICATE

各种认证

INSTALLATION INSTRUCTIONS

1. Drill 2 holes of Φ6mm at the requested place, keep 118mm distance between the 2 holes,2~4m
height from ground.
2. Fix two expansion plugs into the hole.
3. Fix a screw to the lower expansion plug with a little spare space, insert the stripe groove
into the screw groove and fixed.
4. Straighten the whole light and fasten the screw strictly.
5. Switch on the whole system by the provided unlock pin.



安装视图彩色横条

Notes

  1. N o light when no motion for the mian-light.Press the button one time,the main light will burn when people iscoming,last for 15s,the back lights will turn into blue light,last for 1min .
  2. The product is equipped with an internal lithium battery,please do not avoid explosion.
  3. Please understand that lighting time depends on sunshine duration and weather.
  4. Press the button four times, the main lights will burn when people is coming,last for 15sThe back lights willchange light be between blue,red and green,last for 1min.Press the button over 3s,the light turn off.

5W效果图

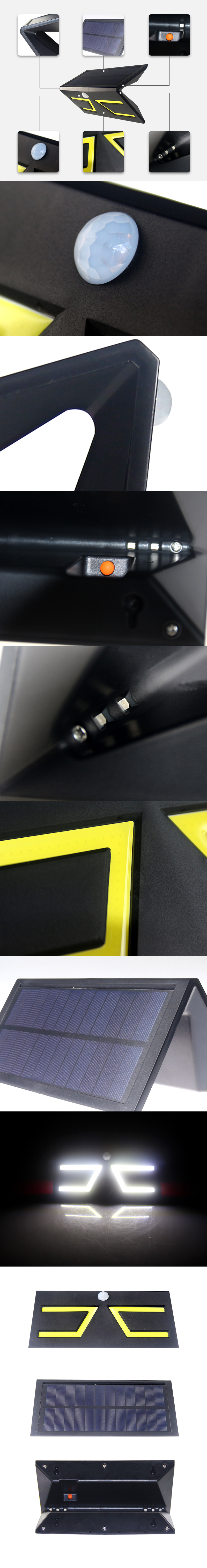

 5W-黑色细节展示图
